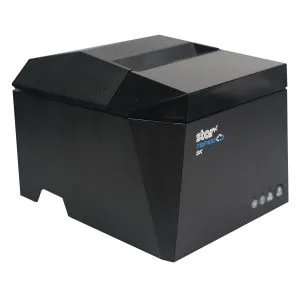

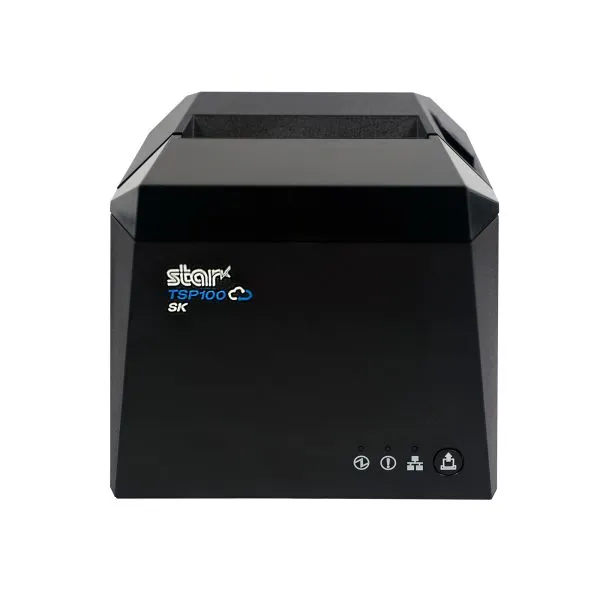

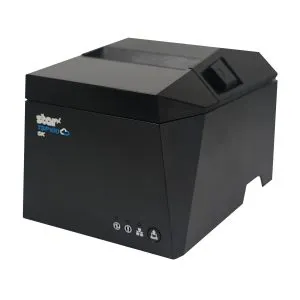

TSP143IV SK Sticky Linerless Label Printer
Introducing the TSP143IV SK series from Star Micronics: the pinnacle of thermal linerless removable label printing in a sleek, compact form. As the market’s smallest 3-inch desktop sticky label printer, it blends advanced features like Android Open Accessory (AOA) support, dual-band wireless connectivity, and CloudPRNT Next technology with eco-friendly linerless labels. Ideal for a variety of applications, from food and beverage service (QSR) to delivery, this printer enhances efficiency with its repositionable labels that adhere to any surface without leaving residue. The TSP143IV SK is a step forward in printing technology and environmental responsibility, making it a perfect fit for modern businesses.

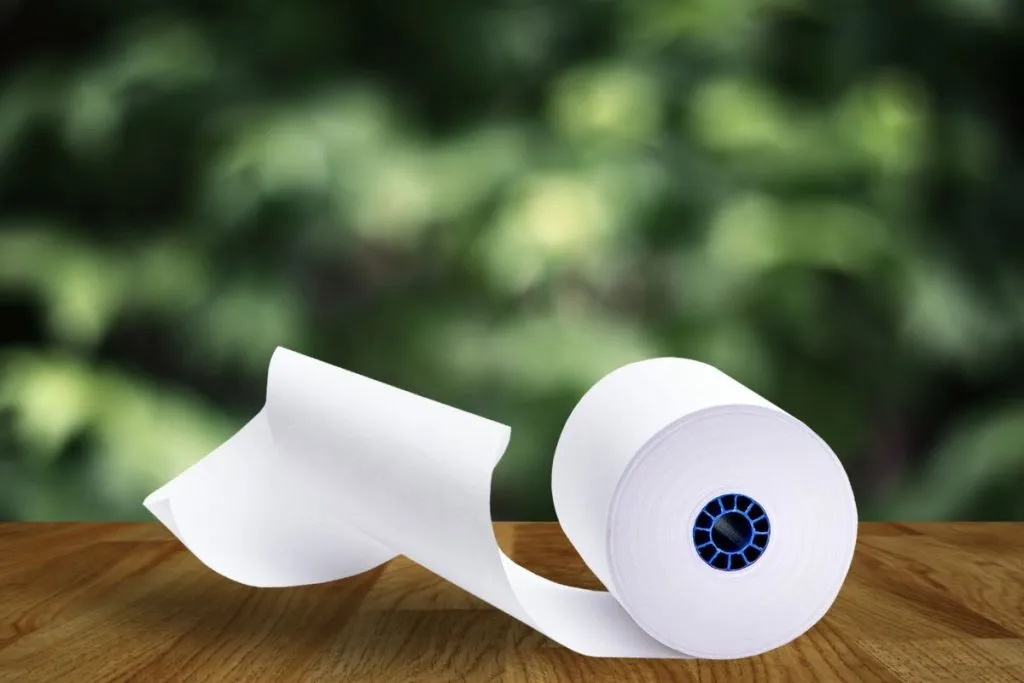

The TSP143IV SK series transforms retail and hospitality operations with eco-friendly, EnergyStar-certified technology. Compatible with Star Blue Eco linerless labels, which are Prop 65 compliant and phenol-free, these printers provide a safer, greener solution for businesses. Perfect for fast-paced environments like QSRs, drive-thrus, cafes, and delis, these repositionable labels improve order accuracy and streamline workflows. They’re also ideal for online orders and deliveries. Adhering to surfaces without residue, they reduce waste by eliminating silicone liners, reflecting Star Micronics’ commitment to sustainability and efficiency.
CloudPRNT Next leverages advanced MQTT protocol technology for faster, more reliable communication between printers and cloud systems. This innovation eliminates local device connectivity, enabling seamless remote printing and real-time status updates. Optimized for retail, hospitality, and online ordering, it supports large-scale operations with unmatched scalability and integrates effortlessly with diverse server architectures, modernizing printing for cloud-driven environments.

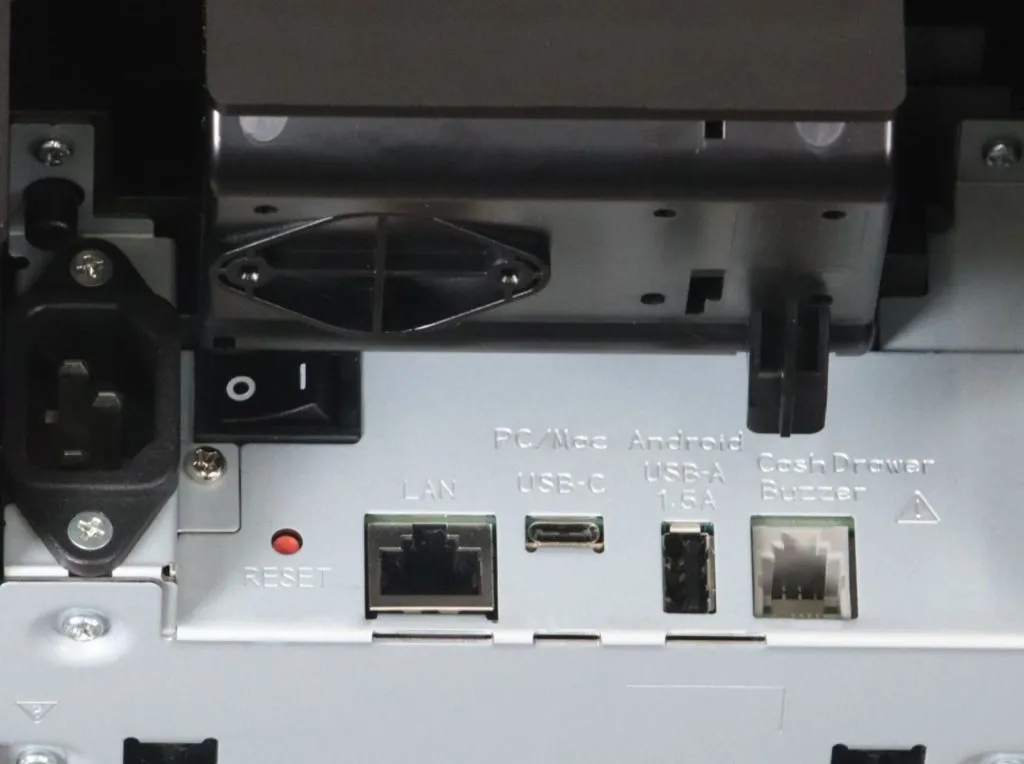

The TSP143IV SK X4 removable linerless label printer simplifies connectivity by including all four interfaces—USB, LAN, WLAN, and Bluetooth—so developers don’t have to choose. This versatile design ensures seamless compatibility with Windows, iOS, and Android platforms. The USB-C port offers reliable connection and power capabilities, while Ethernet (LAN) provides dependable wired performance. With all interfaces included, the TSP143IV SK X4 model is a reliable, scalable solution for businesses in retail, QSR, hospitality, and other fast-paced industries.

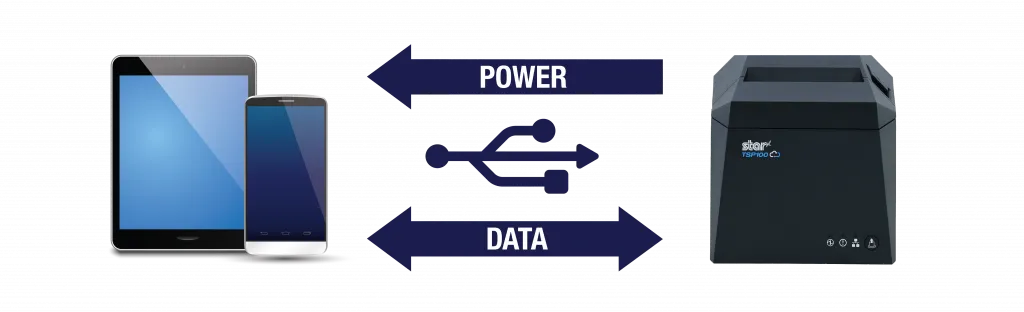

The TSP143IV SK series of sticky linerless label printers seamlessly connects to all major operating systems, including iOS, Windows, and Android. With support for the Android Open Accessory (AOA) protocol, every model in the series enables smooth communication and power delivery to Android devices, ensuring reliable, all-day operation. Star Micronics’ commitment to ease of use and modern functionality makes the TSP143IV SK series a versatile and dependable solution for businesses utilizing Android platforms and beyond.
The TSP143IV SK X4 features dual-band wireless functionality, enabling seamless switching between 2.4GHz and 5GHz networks for optimal performance. With Star’s Quick Setup Utility or QR code, Wi-Fi setup is fast and simple, with diagnostic printouts ensuring success. Once connected, the printer serves as a hub for peripherals like payment terminals, making it a reliable solution for fast-paced industries such as retail and hospitality.

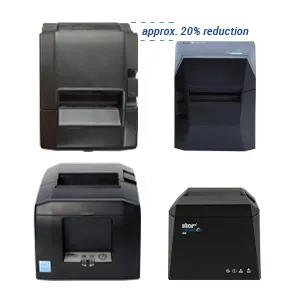

Get unmatched space efficiency with the TSP143IV SK, the market’s smallest repositionable linerless label printer. Boasting an ultra-modern and sleek design, it’s 20% more compact than its predecessor, transforming your POS area with a clean, contemporary look. This design’s fully internal power supply not only saves valuable counter space but also prevents accidental power-offs, ensuring steady operations.
| Ultra-Compact and Stylish Design | The TSP143IV SK series offers a sleek, compact form with the smallest 3″ sticky label footprint in the market, perfect for maximizing counter space. |
| Eco-Friendly with Linerless Labels | EnergyStar-certified and capable of printing repositionable linerless sticky labels, the TSP143IV SK series is an eco-conscious choice for businesses aiming to reduce waste. |
| Advanced Connectivity | The TSP143IV SK X4 includes USB, LAN, WLAN, and Bluetooth connectivity, while all models support Android Open Accessory (AOA) for seamless communication and power delivery to Android devices. |
| CloudPRNT Next | Both models feature CloudPRNT Next technology, delivering fast and reliable cloud printing through MQTT protocol, ideal for remote operations and large-scale environments. |
| Dual-Band Wireless | The TSP143IV SK X4 offers dual-band Wi-Fi (2.4GHz/5GHz) with quick and easy setup using Star’s Quick Setup Utility or QR code. |
| Space-Saving Design | The compact design and internal power supply of the TSP143IV SK series ensure modern aesthetics and functional operation, even in tight spaces. |
| Warranty-Protected | The TSP143IV SK series includes a 2-year standard warranty with options to EXTEND-A-STAR® and SWAP-A-STAR®. |
| ENERGY STAR Certified |  |
| Printer Method | Direct Line Thermal |
| Print Speed | Up to 180 mm/sec |
| Printer Case Color | Black (Gray) |
| Connectivity | TSP143IVUE SK Models: USB/LAN Dual Interface (USB-C and USB-A), CloudPRNT Next, AOA (Android Open Accessory support) TSP143IV SK X4 Models: USB-C, Ethernet (LAN), WLAN, Bluetooth, CloudPRNT Next, AOA (Android Open Accessory support) |
| Print Resolution | 203 dpi (8 dots per mm) |
| No. of Columns | Star Mode = 48 |
| Font Size | 12 x 24 |
| Character Set | Â ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
| International Code Pages | Star Mode=48 |
| Bar Codes | Extended barcode functionality – 9 versions / PDF 417, Maxicode Option |
| Line Spacing | 3 mm or 4 mm or programmable |
| Paper Width | 80 mm standard, 58 mm, and 40 mm with paper guides |
| Paper Thickness | 65 – 98 um |
| Paper Roll Diameter | Up to 83 mm |
| Paper Loading | “Drop-In & Print” |
| Paper-Out Sensor | Yes |
| Maximum Print Width | 80 mm paper = 72 mm, 58 mm paper = 50.8 mm, 40 mm paper = 34.5 mm |
| Top Margin | 5 mm default, changeable to 11 mm |
| Auto-Cutter | Guillotine (Partial Cut Only) |
| Sensors | Taken Paper End Cover Open |
| Logo Store Capacity | 512 KB Internal Printer Memory |
| Journal Capability | Available through Starmicronicscloud.com |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Clss, CUPS Driver (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Brower (Android), Star PassPRNT (iOS/Android/UWP) |
| Digitally Signed (WHQL) | Yes |
| Emulation Modes | Star Graphics Mode/StarPRNT |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 compulsion input |
| Power Consumption | Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby;up to 13 W with a 1.5A device connected] |
| Operating Temperature | 5oC to 45oC |
| Operating Humidity | 10% – 90% RH (without condensation) |
| Storage Temperature | Temperature: -20oC to 60oC |
| Storage Humidity | 10% – 90% RH |
| Dimensions | 140 X 123 X 169 (w x h x d) mm |
| Weight | 1.3 kg |
| Safety and Regulatory Standards | UL, C-UL, TuV, FCC, VCCI, EN55022 {This is one part of FCC testing probably do not need to list it}, CE |
| Reliability MCBF | 23.5 Million Lines |
| Print Head | 75 km |
| Auto-Cutter Reliability | 800,000 cuts |
| Sustainability* | Eco Friendly Packaging |
| ENERGY STAR Approved | |

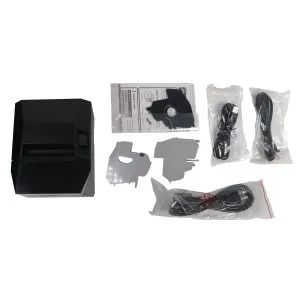

| What’s in the Box | Power Cable LAN Cable (UE model only) USB Cable (C to A) Paper Roll Guide (58 mm) Paper Roll Guide A/B (39 mm) Rubber Feet x 2 Safety Instructions Easy Setup Guide |
| Warranty-Protected | The TSP143IV SK comes with a 2-year standard warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR® |
