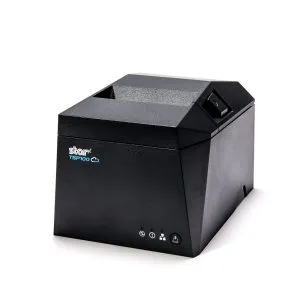

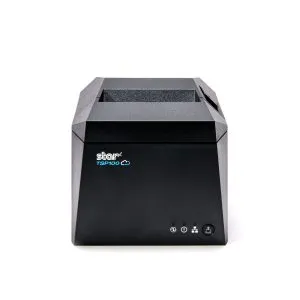

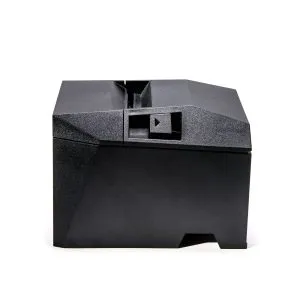

TSP143IV Thermal Receipt Printer
The TSP143IV series thermal receipt printer from Star Micronics combines advanced technology with a sleek, compact design that’s 20% smaller than its predecessor. It offers four versatile connectivity options—USB, LAN, WLAN, and Bluetooth—and ensures seamless compatibility with Windows, iOS, Android, and cloud-based applications. Featuring CloudPRNT Next for faster, more reliable cloud printing, dual-band WLAN with easy setup, and Android Open Accessory (AOA) support, the TSP143IV is designed for efficiency and adaptability. High-speed printing, EnergyStar certification, and access to Star Micronics Cloud Services make this printer the ideal solution for modern mPOS and POS environments.
The TSP143IV X4 thermal receipt printer simplifies connectivity by including all four interfaces—USB, LAN, WLAN, and Bluetooth—so developers don’t have to choose. This versatile design ensures seamless compatibility with Windows, iOS, and Android platforms. The USB-C port offers reliable connection and power capabilities, while Ethernet (LAN) provides dependable wired performance. With all interfaces included, the TSP143IV X4 model is a reliable, scalable solution for businesses in retail, hospitality, and other fast-paced industries.

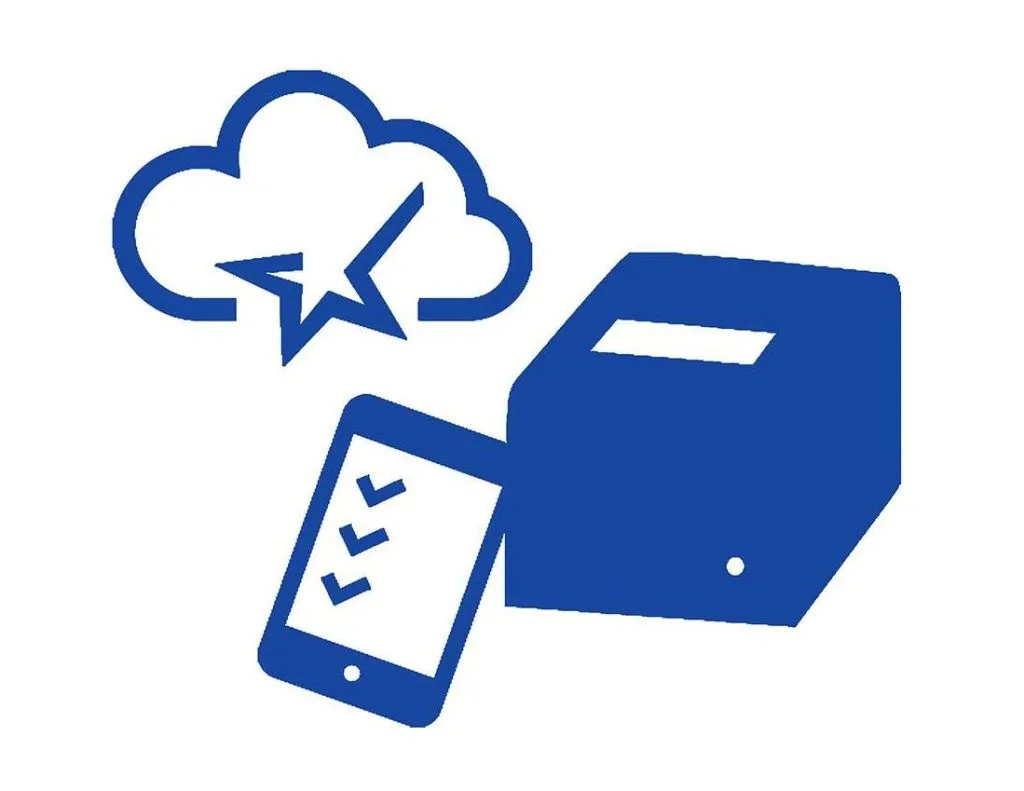

CloudPRNT Next leverages advanced MQTT protocol technology for faster, more reliable communication between printers and cloud systems. This innovation eliminates local device connectivity, enabling seamless remote printing and real-time status updates. Optimized for retail, hospitality, and online ordering, it supports large-scale operations with unmatched scalability and integrates effortlessly with diverse server architectures, modernizing printing for cloud-driven environments.

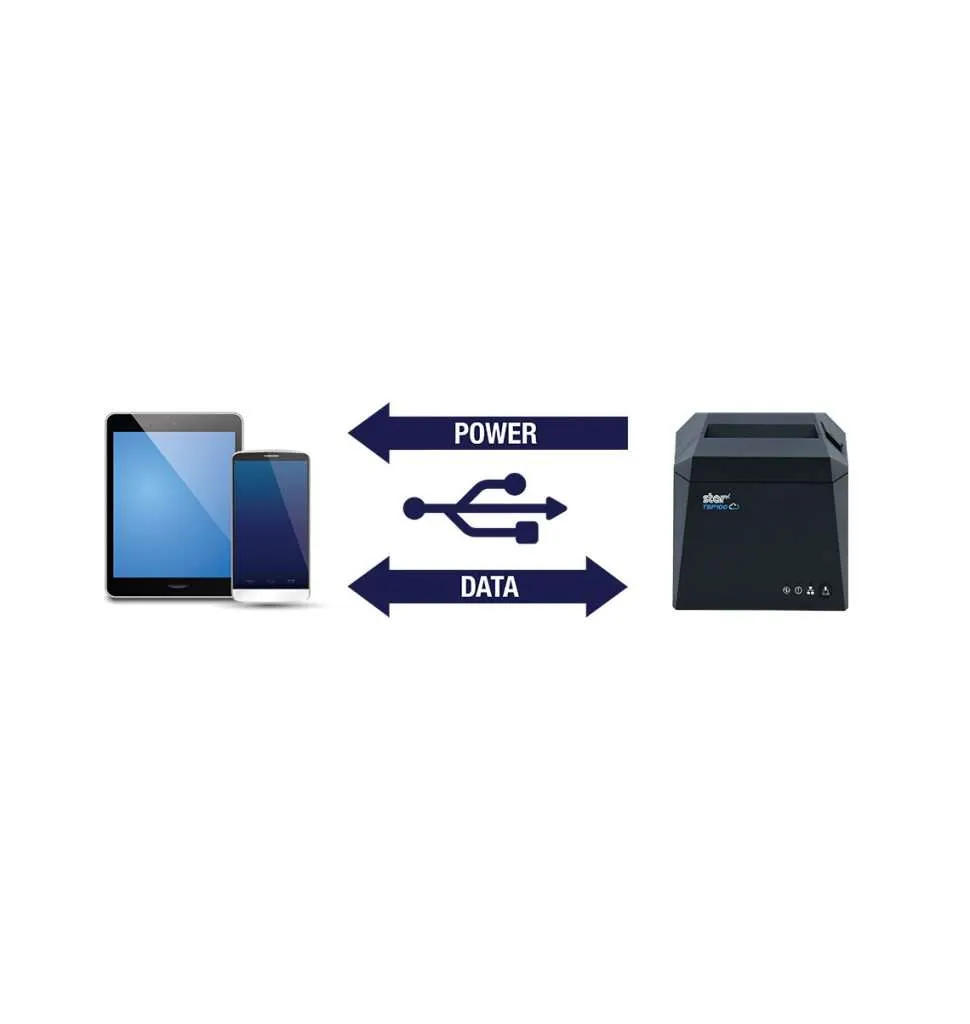

The TSP143IV series of thermal receipt printers seamlessly connects to all major operating systems, including iOS, Windows, and Android. With support for the Android Open Accessory (AOA) protocol, every model in the series enables smooth communication and power delivery to Android devices, ensuring reliable, all-day operation. Star Micronics’ commitment to ease of use and modern functionality makes the TSP143IV series a versatile and dependable solution for businesses utilizing Android platforms and beyond.
The TSP143IV X4 features dual-band wireless functionality, enabling seamless switching between 2.4GHz and 5GHz networks for optimal performance. With Star’s Quick Setup Utility or QR code, Wi-Fi setup is fast and simple, with diagnostic printouts ensuring success. Once connected, the printer serves as a hub for peripherals like payment terminals, making it a reliable solution for fast-paced industries such as retail and hospitality.
Star Micronics Cloud Services offers a developer-friendly platform for efficient, connected systems. Registered devices enable remote firmware updates, real-time status monitoring, and receipt customization with tools like PromoPRNT and Digital Journal. With a customizable API for loyalty programs and free access, Star Cloud Services enhances business operations seamlessly. Contact Star for more details.
The TSP100 series of receipt printers has been the industry standard for years. With the reliability you can count on and the performance you need, the TSP143IV is compatible with countless retail, hospitality, and cannabis dispensary POS software companies. After a long history of successful integrations, Star Micronics is proud to continue to offer innovative and dependable POS hardware solutions to a wide range of today’s businesses.

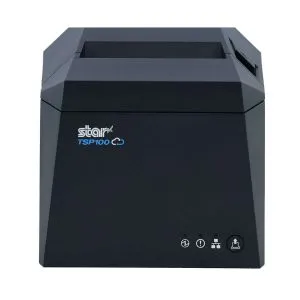

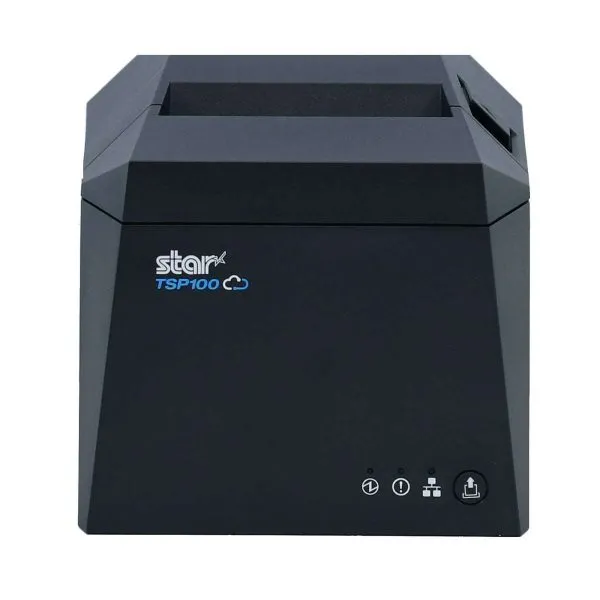

The TSP143IV is 20% smaller than its predecessor, giving your POS area a clean, fresh look while freeing up much-needed counter space. Though readily accessible, the power supply is completely internal, preventing any accidental power-offs.
| Compact and Modern Design | About 20% smaller than the TSP143III, the TSP143IV can be wall-mounted vertically or placed on a desktop |
| AOA Technology | Both TSP143IVUE and TSP143IV X4 models feature Android Open Accessory (AOA) protocol, enabling smooth communication and power delivery to Android devices |
| CloudPRNT Next | Both models support Star’s CloudPRNT Next technology, offering faster, more reliable cloud-based printing through MQTT protocol |
| Connectivity Options | The TSP143IV X4 includes USB, LAN, WLAN, and Bluetooth connectivity, while the TSP143IVUE features dual USB/LAN interfaces |
| Star Cloud Ready | Connect to any cloud application that supports Star’s CloudPRNT technology and also access Star Micronics Cloud Services for device monitoring, custom-designed coupons, and more |
| Warranty-Protected | The TSP143IV comes with a 2-year standard warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR® |
| Compatible with Previous Versions | Easily swap out your previous TSP100s with the new TSP143IV |
| ENERGY STAR Approved |  |
| Printer Method | Direct Line Thermal |
| Print Speed | 250 mm/sec |
| Printer Case Color | White or Gray |
| Connectivity | TSP143IV UE Models: USB/LAN Dual Interface (USB-C and USB-A), Android Open Accessory (AOA), CloudPRNT Next (with updated firmware) TSP143IV X4 Models: USB-C, LAN, WLAN, and Bluetooth, Android Open Accessory (AOA), CloudPRNT Next |
| Print Resolution | 203 dpi (8 dots per mm) |
| No. of Columns | Star Mode = 48 |
| Font Size | 12 x 24 |
| Character Set | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
| International Code Pages | Star Mode=48 |
| Bar Codes | Extended barcode functionality – 9 versions / PDF 417, Maxicode Option |
| Line Spacing | 3 mm or 4 mm or programmable |
| Paper Width | 80mm standard, 58mm with paper guide |
| Paper Thickness | 0.049 ~ 0.085 mm |
| Paper Roll Diameter | Up to 83 mm |
| Paper Loading | “Drop-In & Print” |
| Paper-Out Sensor | Yes |
| Maximum Print Width | 80mm paper = 72mm, 58mm paper = 50.8mm |
| Top Margin | 11 mm default |
| Auto-Cutter | Guillotine (Partial Cut Only) |
| Cover-Open Sensor | Yes |
| Logo Store Capacity | 512KB Internal Printer Memory |
| Journal Capability | Available through Starmicronicscloud.com |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Clss, CUPS (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Brower (Android), Star PassPRNT (iOS/Android/UWP) |
| Digitally Signed (WHQL) | Yes |
| Emulation Modes | Star Graphics Mode/StarPRNT |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 compulsion input |
| Power Consumption | Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby;up to 13 W with a 1.5A device connected] |
| Operating Temperature | 5oC to 45oC |
| Operating Humidity | 10% – 90% RH (without condensation) |
| Storage Temperature | Temperature: -20oC to 60oC |
| Storage Humidity | 10% – 90% RH |
| Dimensions | 140 X 123 X 169 (w x h x d)mm |
| Weight | 1.3kg |
| Safety and Regulatory Standards | UL, C-UL, TuV, FCC, VCCI, EN55022 {This is one part of FCC testing probably do not need to list it}, CE |
| Reliability MCBF | 60 Million Lines |
| Print Head | 100km |
| Auto-Cutter Reliability | 2 Million Cuts |
| Sustainability* | Eco Friendly Packaging |
| ENERGY STAR Approved | |
| What’s in the Box | Power Cable LAN Cable (UE model only) USB Cable Paper Roll Guide Rubber Feet Safety Instructions Easy Setup Guide |
| Warranty-Protected | The TSP143IV comes with a 2-year standard warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR® |
*TSP143IV X4 Only
